SPECIFICATIONS

Audio Port: DC 3.5mm Audio Port Jack

Brand Name: pobod

Card Slot: SD, Micro SD, TF Card Reader

Certification: CE,FCC,RoHS

Ethernet Port: Ethernet LAN RJ45 Network Card Adapter

HDMI: Max Support 4K, Downward compatible With 1080P 720P etc.

High-concerned chemical: None

Length: 28

Material: Aluminum

Model Number: USB C Laptop Docking Station

Origin: Mainland China

Package: Yes

Type: Laptop Docking Stations

USB: 2*USB 3.0 + 1*USB 2.0

USB C Data: High-Speed Data Transfer

USB C PD: USB C Power Delivery

VGA: Max Support 1080P

Width: 8

USB Type C Hub Adapter Laptop Docking Station, MST Dual Monitors Dual Displays HDMI VGA RJ45 SD TF for MacBook Dell HP Lenovo

USB C Docking Station Specifications:

*********************************************************

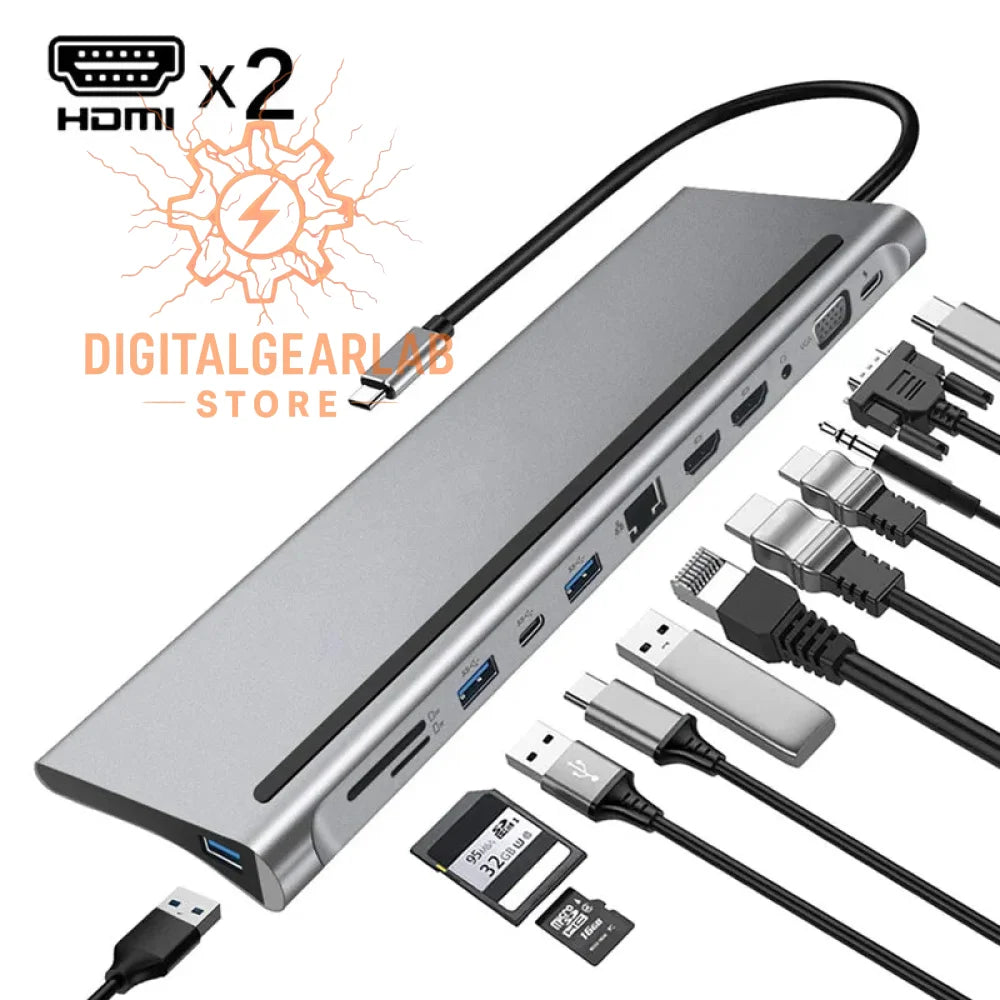

12-IN-1 Docking Station

Color: Silver

Material: Aluminum alloy

Size: 274mm*80mm*(16mm, 8mm)/10.79*3.15*(0.62, 0.31)inch

Length of Cable: 290mm/11.42inch

Interface: USB Type C male port

Port-1: USB 2.0, Type A Female Port

Port-2: SD Card Slot

Port-3: Micro SD Card Slot, TF Card Slot

Port-4: USB 3.0, Speed up to 5Gbps, Power Supply Up to 5V-900mA 4.5W

Port-5: USB Type C Female Port for Data Transmission, Speed up to 5Gbps, Power Supply Up to 5V-900mA 4.5W

Port-6: USB 3.0, Speed up to 5Gbps, Power Supply Up to 5V-900mA 4.5W

Port-7: Ethernet Network Adapter RJ45 Port, 10/100Mbps, NOT support 1000Mbps

Port-8: HDMI max support 4K 30Hz, Downwards Compatible with 1080P, 720P etc.

Port-9: HDMI max support 4K 30Hz, Downwards Compatible with 1080P, 720P etc.

Port-10: DC 3.5mm Audio Jack Port

Port-11: VGA max support 1080P 60Hz, Downwards Compatible with 1080I, 720P etc.

Port-12: USB Type C PD Charging Port

*********************************************************

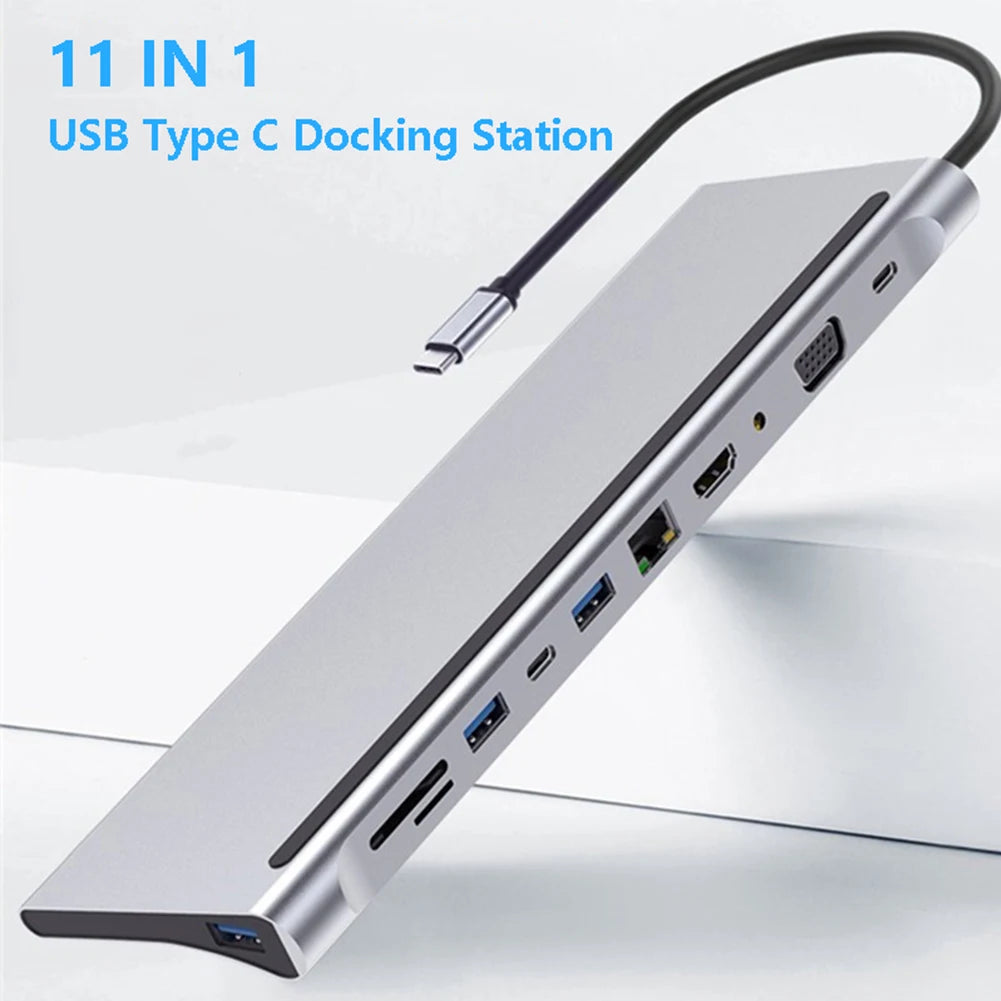

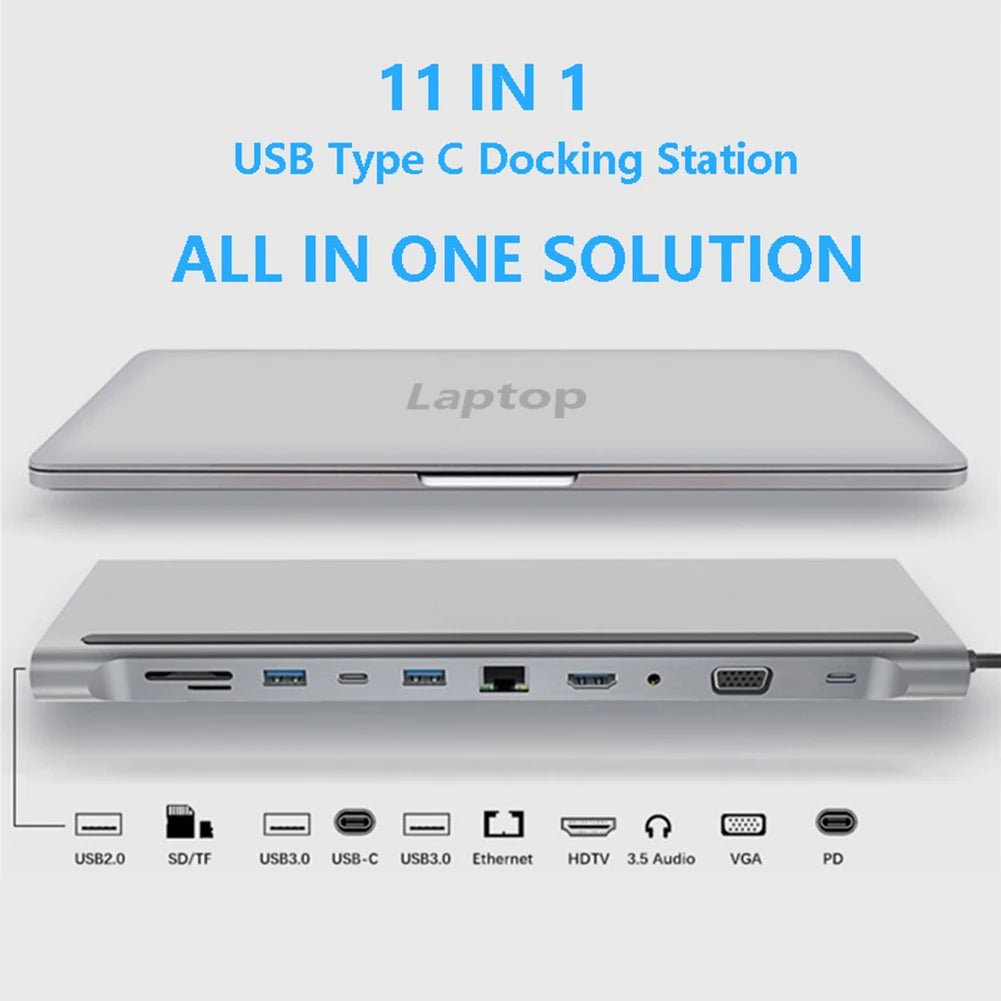

11-IN-1 Docking Station

Color: Silver

Material: Aluminum alloy

Size: 250mm*80mm*(16mm, 8mm)/9.84*3.15*(0.62, 0.31)inch

Length of Cable: 290mm/11.42inch

Interfaces: USB Type C male port

Port-1: USB 2.0, Type A Female Port

Port-2: SD Card Slot

Port-3: Micro SD Card Slot, TF Card Slot

Port-4: USB 3.0, Speed up to 5Gbps, Power Supply Up to 5V-900mA 4.5W

Port-5: USB Type C Female Port for Data Transmission, Speed up to 5Gbps, Power Supply Up to 5V-900mA 4.5W

Port-6: USB 3.0, Speed up to 5Gbps, Power Supply Up to 5V-900mA 4.5W

Port-7: Ethernet Network Adapter RJ45 Port, 10/100Mbps, Not 1000Mbps

Port-8: HDMI max support 4K 30Hz, Downwards Compatible with 1080P, 720P etc.

Port-9: DC 3.5mm Audio Jack Port

Port-10: VGA max support 1080P 60Hz, Downwards Compatible with 1080I, 720P etc.

Port-11: USB Type C PD Charging Port

*********************************************************

Function-1: Connect Keyboard, Mouse, USB Flash, Printer etc.

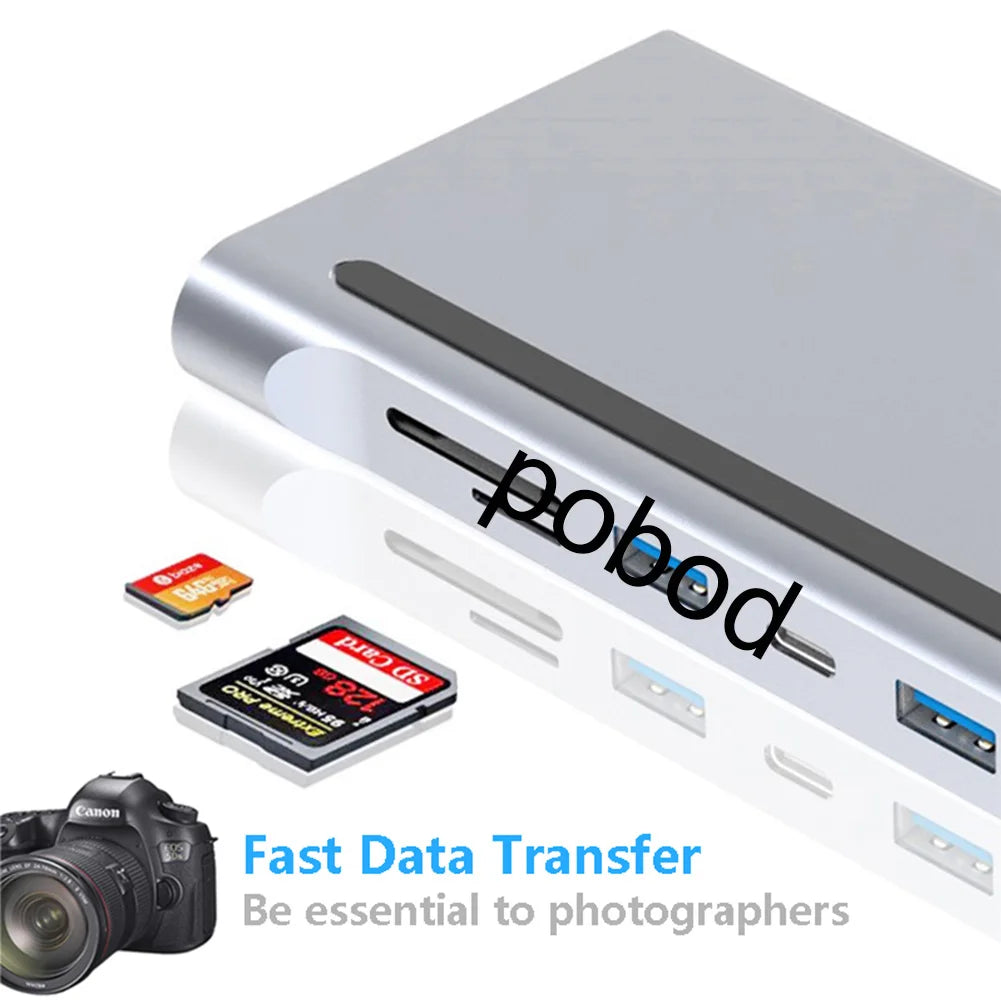

Function-2: Easy to Read Digital Camera Storage SD, Micro SD, TF Card

Function-3: Connect Lan via RJ45, Enjoy more reliable network than wireless

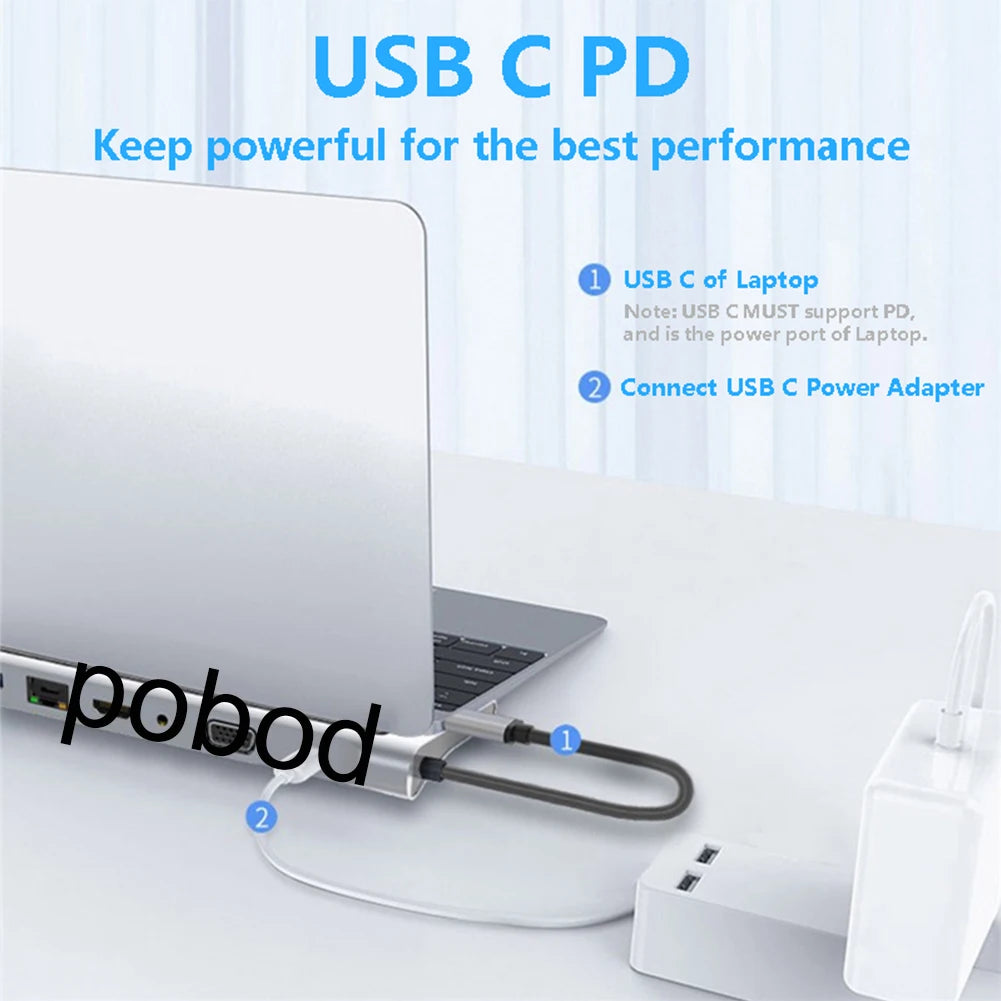

Function-4: Support USB C Power Delivery, Keep laptop the best performance

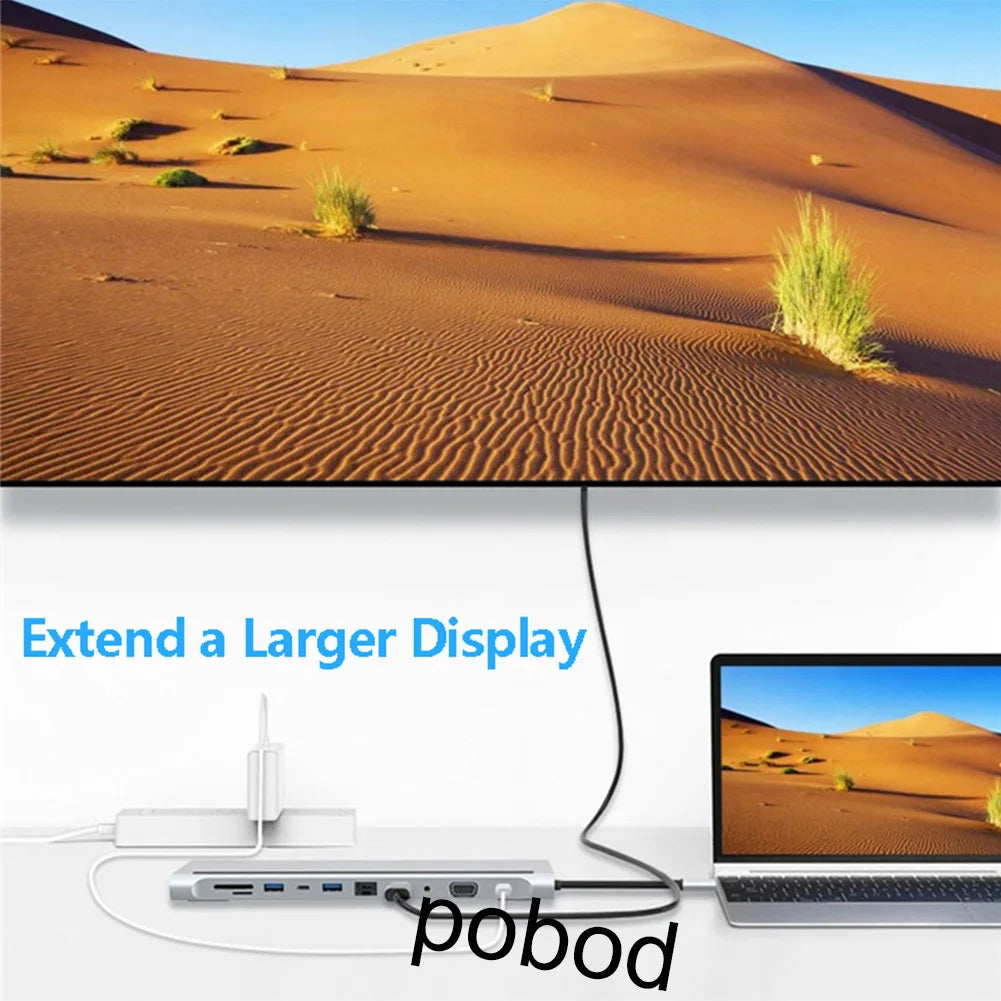

Function-5: Extend a Larger Screen via HDMI or VGA

Function-6: Connect Projector, Monitor, HD-TV, HDMI up to 4K 3840x2160 30Hz

Function-7: 2 HDMIs and VGA, Support Mirror Mode and Extended Mode

Function-8: Support MST, Extend mode support Extend 2 monitors to show different contents on Windows

*********************************************************

Package Contents: 1*USB C Docking Station

ONLY 1 Docking station in the package, other accessories are not included.

*********************************************************

Compatible:

* For MacBook 2018/2017, MackBook Pro 2018/2017

* For Lenovo ThinkPad T490, T490s, T14 (14")Intel, T480, T480s, T580, T590, T15 (15")Intel

* For Lenovo ThinkPad P43s (14"), P14s (14"), P15s (15")

* For Lenovo ThinkPad X280, X390, X13(13")Intel, X13 Yoga(13"), X380 Yoga(13")

* For Lenovo ThinkPad X1 Yoga Gen 3 (14"), X1 YOGA Gen 4 (14"), X1 Yoga Gen 5 (14")

* For Lenovo ThinkPad X1 Carbon Gen 6 (14"), X1 Carbon Gen 7 (14"), X1 Carbon Gen 8 (14")

* For Dell XPS 13 9360, XPS 13 9370, XPS 13 9380, XPS 13 7390, XPS 13 9300

* For Dell XPS 13 9365 2-in-1, XPS 13 7390 2-in-1

* For Dell XPS 15 9575 2-in-1

* For Dell Latitude 7400 2-in-1 14"

* For Dell Latitude 7200 2-in-1 12", Latitude 7210 2-in-1 12"

* For HP SPECTRE x360 15.6'', HP SPECTRE x369 13''

* For Surface Book 2

* updating...

The other windows laptops MUST require:

- The USB-C port on your laptop is a Thunderbolt-3 port.

- The USB-C port of the laptop is also a AC(power) port, or you don't want to power the laptop via this docking station.

WARNING TIPS:

1. If you are not sure whether this docking station is compatible with your laptop,

please tell me the model of your laptop, I am pleasure to check the compatible.

2. You MUST make sure the host USB-C port is on the left side of your laptop.

Because the length of cable maybe not enough to connect USB-C port in the right side when placing this Docking station under the laptop.

Or you don't want to place this docking station under the laptop.

3. ONLY 12-IN-1 For Windows supports Extend 2 monitors to show the different screens.

4. It supports 4K or 2K when only one HDMI monitor is connecting. When connecting more one monitor, their resolution will all downward to 1080p.

5. When you use the docking station to extend monitors, please connect to monitors first, and then connect to your laptop.

   Not support HDMI and VGA Hot plug.
